1000nits 1.54" High Brightness TFT Display 240x240 Dot Matrix LCD Display SPI Interface

Name: 1000nits 154quot High Brightness TFT Display 240x240 Dot Matrix LCD Display SPI Interface
Brand: SAEF
Price: 1 USD

China 1000nits 1.54" High Brightness TFT Display 240x240 Dot Matrix LCD Display SPI Interface factory

Brand Name : SAEF

Model Number : SF-TC154B-8945B-N

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : the lowest unit price in the market guaranteed

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Product : 1.54" TFT Screen

Resolution : 240x240

Viewing Direction : Full Viewing angle(80/80/80/80)

Touch screen : No

Interface : MCU ( customizable )

Pin number : 24 pins

Surface Luminance : 1000 cd/m2(nits)

LED lifetime : 40,000 hours

Cover glass : customizable

Compliance : REACH & RoHS Compliant

Contact Now

Introducing our cutting-edge High Brightness 1000 nits 1.54" TFT LCD Display SF-TC154B-8945B-N, designed to elevate your projects and applications with its stunning visual clarity and robust performance.

Key Features:

High Brightness (1000 nits): Our display ensures exceptional visibility in various lighting conditions, making it ideal for outdoor environments or bright indoor settings.
Compact Size (1.54"): This compact TFT LCD fits perfectly in devices where space is a premium, while still delivering rich visual content.
Resolution (240x240): The 240x240 dot matrix provides sharp and vibrant images, making your visuals pop with clarity and color.
SPI Interface: The Serial Peripheral Interface (SPI) facilitates fast and efficient communication, enabling seamless integration with microcontrollers and other digital systems.

Ideal Applications:

Wearable Devices: Perfect for smartwatches and fitness trackers where screen size and brightness are critical.
Industrial Automation: An excellent choice for control panels and machinery displays that require high visibility and durability.
Consumer Electronics: Suitable for handheld devices, providing users with an engaging visual experience.
Smart Home Devices: Enhances user interaction with home automation systems through clear and vibrant displays.

Summary:

With its superior brightness, compact size, and ease of integration, our High Brightness 1.54" TFT LCD Display is the perfect solution for your next innovative project. Elevate your user experience and grab attention with a display that shines brightly in any environment.
Explore the possibilities today!

Product Quick Details

1. LCD Size: 1.54” inch TFT
2. Resolution: 240x240
3. Viewing Angle: All Viewing Angles
4. Outline Dimension: 31.52x33.72x1.8 mm
5. LCD Driver IC: ST7789V
6. LCD Interface Type: SPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: custom or standard capacitive touch screen(CTP) opational

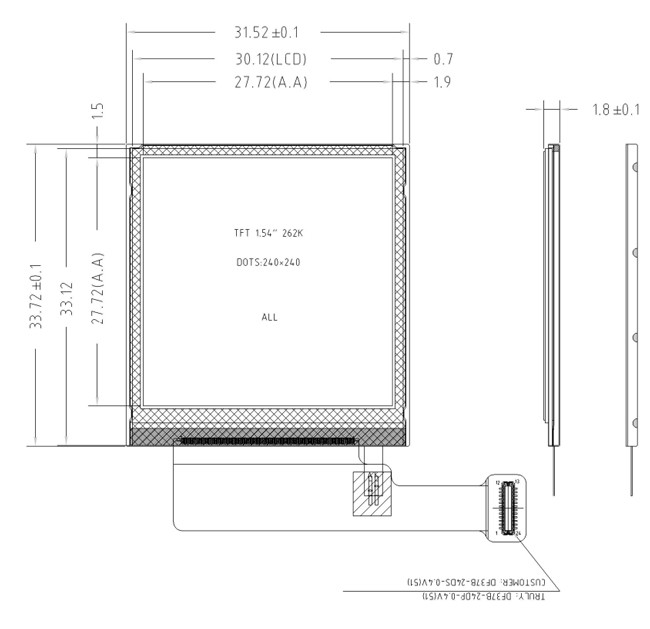

External Drawing
1000nits 1.54" High Brightness TFT Display 240x240 Dot Matrix LCD Display SPI Interface

Pin Interface Definition

NO.	PIN NAME	Description
1-2	LEDK	LED Cathode
3-4	GND	Ground
5	FMARK	Serve as a TE (Tearing Effect) output signal
6	SDA	serial data input/output bi-direction pin
7	D/C	Data/Command Selection pin
8	SCL	SCL pin as Serial Clock when operates in the serial interface
9	CS	Input pin for chip selection signal
10	RESET	LCM Reset input signal
11-12	IOVCC	Power Supply 1.8V/2.8V Voltage
13-14	VCC	Power Supply 2.8V Voltage
15-16	GND	Ground
17-22	NC	NC
23-24	LEDA	LED Anode

MAXIMUM ABSOLUTE LIMIT

Item	Symbol	Value	Unit
Power supply voltage for logic	VDD	1.6~3.3	V
Input voltage	Vin	VDD+0.3	V
Operating temperature	Topr	-20 to 70	.C
Storage temperature	Tstg	-30 to 80	.C

DC Characteristics (VDD=2.8V,Ta=25.C)

Item	Symbol	Min	Type	Max	Unit	Test condition
Operating voltage	VDD	2.6	2.8	3.3	V	-
Supply current	IDD	-	-	5	mA	VDD=2.8V,Ta=25.C
Input voltage	VIH	0.8VDD	-	VDD	V	-
Input voltage	VIL	0	-	0.2VDD	V	-
Input leakage current	IIL	-1.0	-	1.0	μA	VIN=VDD or VSS

Backlight Electrical-optical Characteristics

Item	Symbol	MIN	TYP	MAX	UNIT	Test Condition
Supply Voltage	Vf	-	9.6	-	V	If=20 mA
Supply Current	If	-	20	-	mA	-
Reverse Voltage	Vr	-	-	5	V	-
Power dissipation	Pd	-	192	-	mW	-
Luminous Intensity for LCM	-	900	1000	1100	Cd/m2	If=20mA
Uniformity for LCM	-	80	-	-	%	If=20 mA
Backlight Color	White

OPTICAL CHARACTERISTICS

No.	ITEM	Symbol	Conditions	Specification			Unit
				Min	Typ	Max
1	Response Time	Tr+Tf	25℃	-	6	-	Ms
2	Transmittance (With PL)	T(%)	-	-	7.1	-	-
3	Contrast Rate	Cr	θ=0, Normal viewing angle	-	500	-	-
4	Viewing Angle		CR>10	-	80	-	Deg

Product Pictures

1000nits 1.54" High Brightness TFT Display 240x240 Dot Matrix LCD Display SPI Interface

Contact Us

Please feel free to contact us for more information.
